WEATHER MONITORING AND CONTROL SYSTEM

WEATHER MONITORING AND CONTROL SYSTEM

Measurement item: Various monitoring equipments below





We can offer advanced weather monitoring and control system to support safe operation of railway.  By using communication lines along the railway route, all the information gathered at local observatories are sent to the central control office where the data is stored and displayed in such devices like the monitoring PC, LCD display or information display board.  Since the data can be presented in graphical and numerical format, that cover each district or whole area of railway lines, it is effective to monitor, review and control the data. On demand, the alarm setting to restrict railway operation is possible. It is also possible to monitor the information using LAN.  Besides, our system can automatically transmit a message when this system is malfunctioned by a failure of equipment or disorder of communication lines between the data transmission devices.



Simplified chart for weather monitoring and control system

1. Rain monitoring

2. Wind monitoring

3. Water level monitoring

4. Earthquake monitoring

5. Falling rock monitoring

6. Rail temperature monitoring

7. Monitor camera

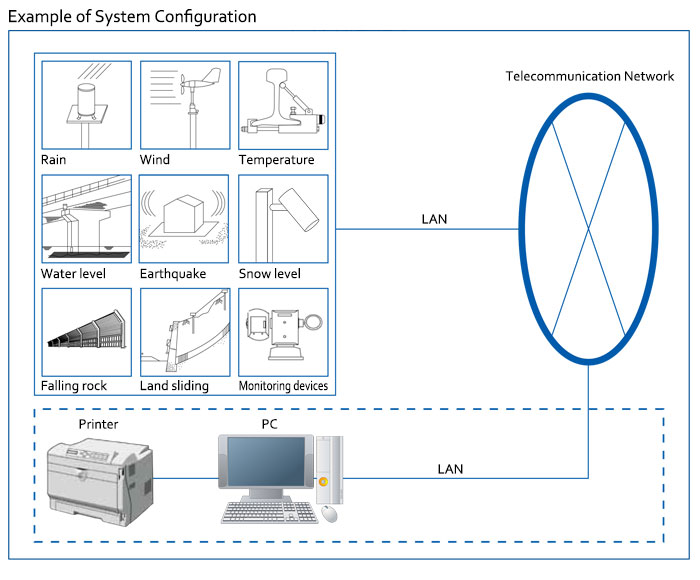

Example of System Configuration
